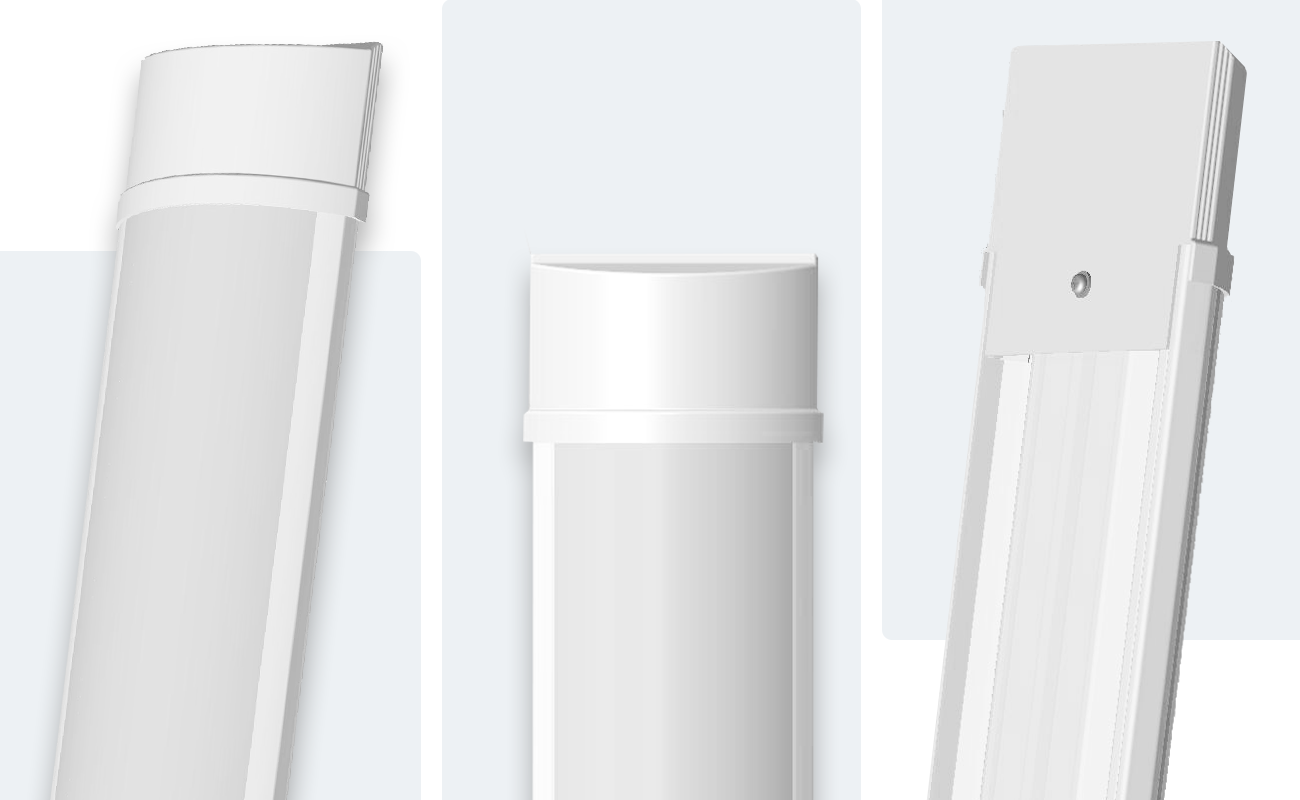

全塑净化灯E系列
- PC Eco 材质经济实用
- 令人印象深刻的性能，高达 140 流明/瓦
- 多功能超薄设计
- 可安装在商业和工业应用中
- 使用连接到主体的金属夹轻松安装 - 无需螺丝刀
- LED寿命L70 30,000小时。
相关参数
|
ITEM |
Parameter |
GETP03 |
GETP06 |
GETP12 |
GETP15 |
Remark |
|
1 |
Input Voltage |
200-240 |
200-240 |
200-240 |
200-240 |
VAC |
|
2 |
Frequency |
50/60 |
50/60 |
50/60 |
50/60 |
Hz |
|
3 |
Power Watt（±5%） |
Type:9W |
Type:18W |
Type:36W |
Type:45W |
W |
|
4 |
Displacement Factor |
>0.7 |
>0.7 |
>0.9 |
>0.9 |
- |
|
5 |
Driver Standard |
CE/ERP2.0 |
CE/ERP2.0 |
CE/ERP2.0 |
CE/ERP2.0 |
- |
|
6 |
LED TYPE |
SMD2835 |
SMD2835 |
SMD2835 |
SMD2835 |
- |
|
7 |
Color consistency in level |
Max.6SDCM |
Max.6SDCM |
Max.6SDCM |
Max.6SDCM |
- |
|
8 |
Starting Time |
<0.5 |
<0.5 |
<0.5 |
<0.5 |
Seconds |
|
9 |
Luminous Efficacy |
80 |
80 |
80 |
80 |
Lm/w |
|
10 |
LED Chips |
48 |
96 |
180 |
240 |
PCS |
|
11 |
Viewing Angle |
120 |
120 |
120 |
120 |
Degree |
|
12 |
Luminous Flux（±5%） |
Type:900LM |
Type:1800LM |
Type:3600LM |
Type:4500LM |
LM |
|
13 |
CRI |
>80 |
>80 |
>80 |
>80 |
- |
|
14 |
Color Temperature |
WW: F3000 NW: F4000 CW: F6500 |
WW: F3000 NW: F4000 CW: F6500 |
WW: F3000 NW: F4000 CW: F6500 |
WW: F3000 NW: F4000 CW: F6500 |
K |
|
15 |
Work Tem. |
-20—40 |
-20—40 |
-20—40 |
-20—40 |
℃ |
|
16 |
Input Type
|
2*0.75m²20cm |
2*0.75m²20cm |
2*0.75m²20cm |
2*0.75m²20cm |
- |
|
17 |
Warranty |
2 |
2 |
2 |
2 |
Years |
|
18 |
LVD |
3000 |
3000 |
3000 |
3000 |
ACV/5mA/1min |
|
19 |
Body Material |
PC |
PC |
PC |
PC |
- |
|
20 |
PC Cover Color |
Milk |
Milk |
Milk |
Milk |
- |
|
21 |
Life Time |
15,000 |
15,000 |
15,000 |
15,000 |
Hrs |
|
22 |
Socket Length |
300 |
600 |
1200 |
1500 |
mm |
